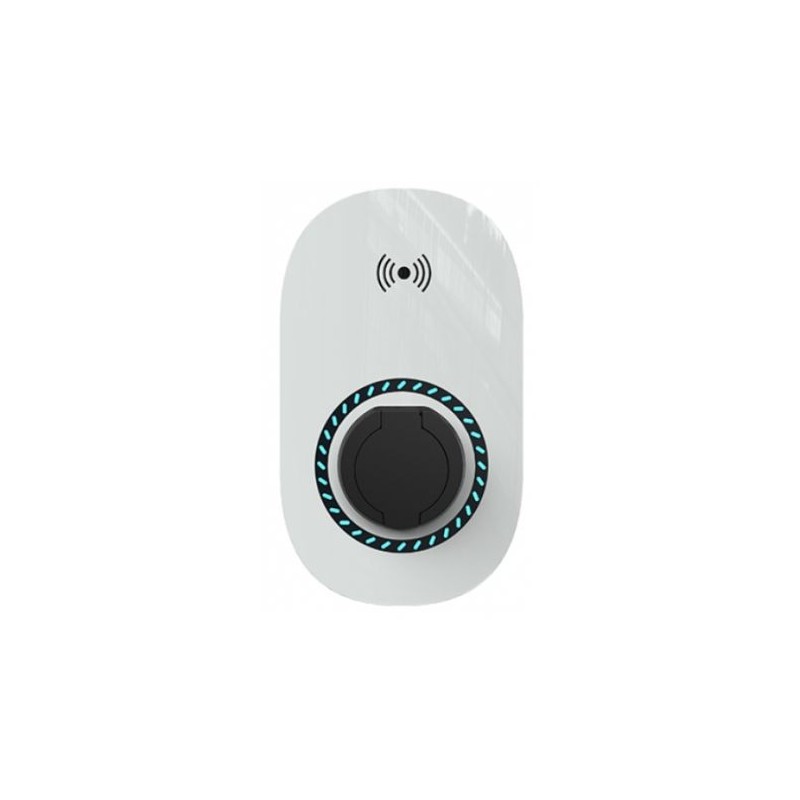

FULLWATT EV box - Socket series 7.4Kw(MAX) F-EVE-PSA-07

◆ Product type：European standard Charging Pile
◆ Electric plug (to electricity)：32A single-phase CEE Plug
◆ Output Connercter (to car)：Socket
◆ Output Voltage [V]：AC230
◆ Maximum Current [A]：32 (16,13,10adjustable)
◆ Rated Output Power [KW]：7.4 (MAX)
◆ Ingress Protection：IP54
◆ Material：PC+ASA
◆ Ground fault detection：AC30mA+DC6mA
◆ Operation Temperature [℃]：-25~+50
◆ Warranty：2 years
◆ Control box [mm]：355*198*105
◆ Weight [kg]：3.2

More:

1、leakage protector： AC+DC6mA;
2、 Support reservation charging/power adjustment
3、 IP55 rated for indoor/outdoor applications;
4、 RFID function for residential application;
5、 Complies with the OCPP1.6J protocol
6、 Optional wireless connection with Bluetooth /WiFi /4Gfor business applications ;
7、 optional  Ethernet/ 485 interfaces/Dynamic load balance for business applications
8、 Optional wall-mounted installation or pedestal installation for different installation demand;
